COHERA TECH 3D COUNTER

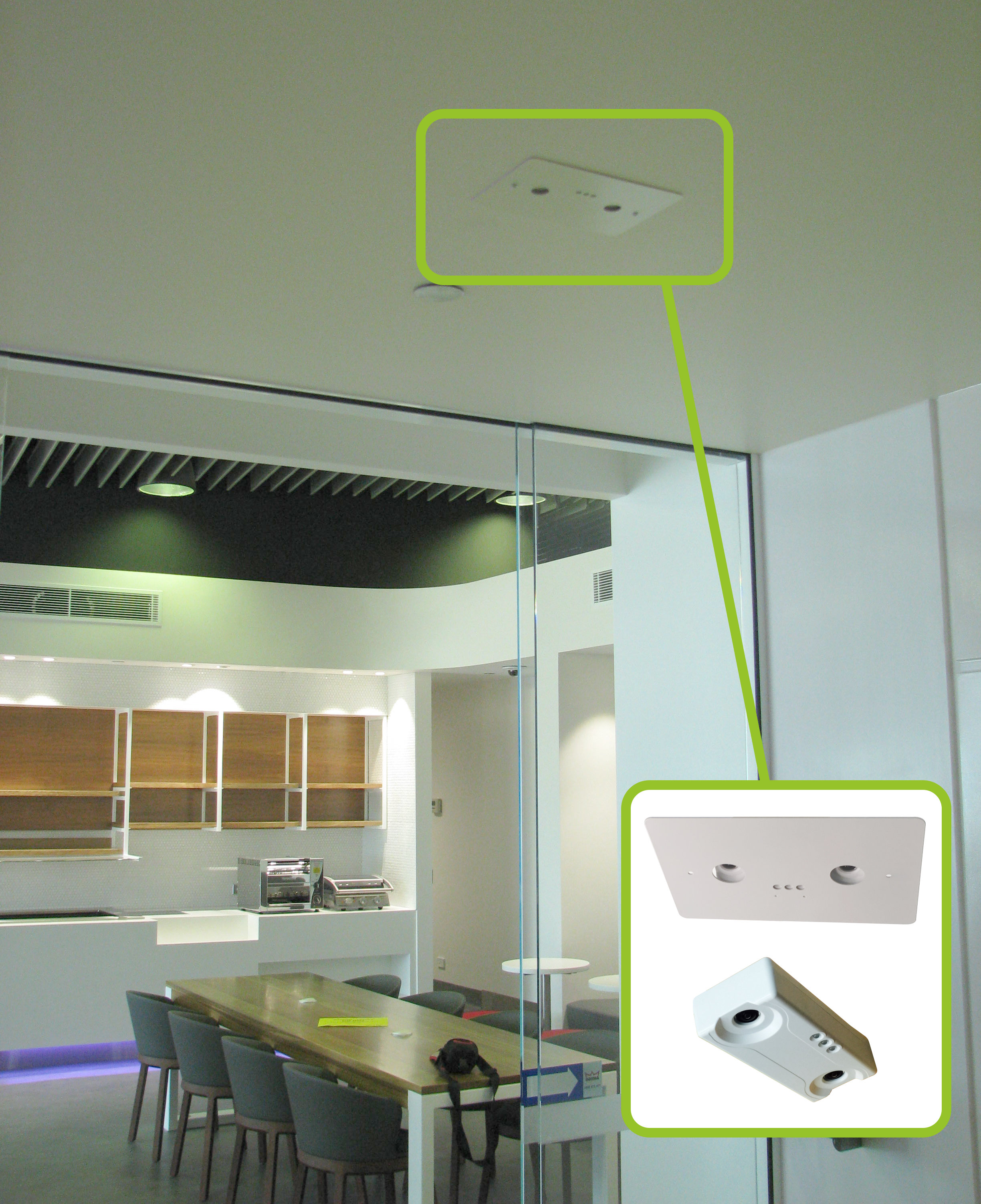

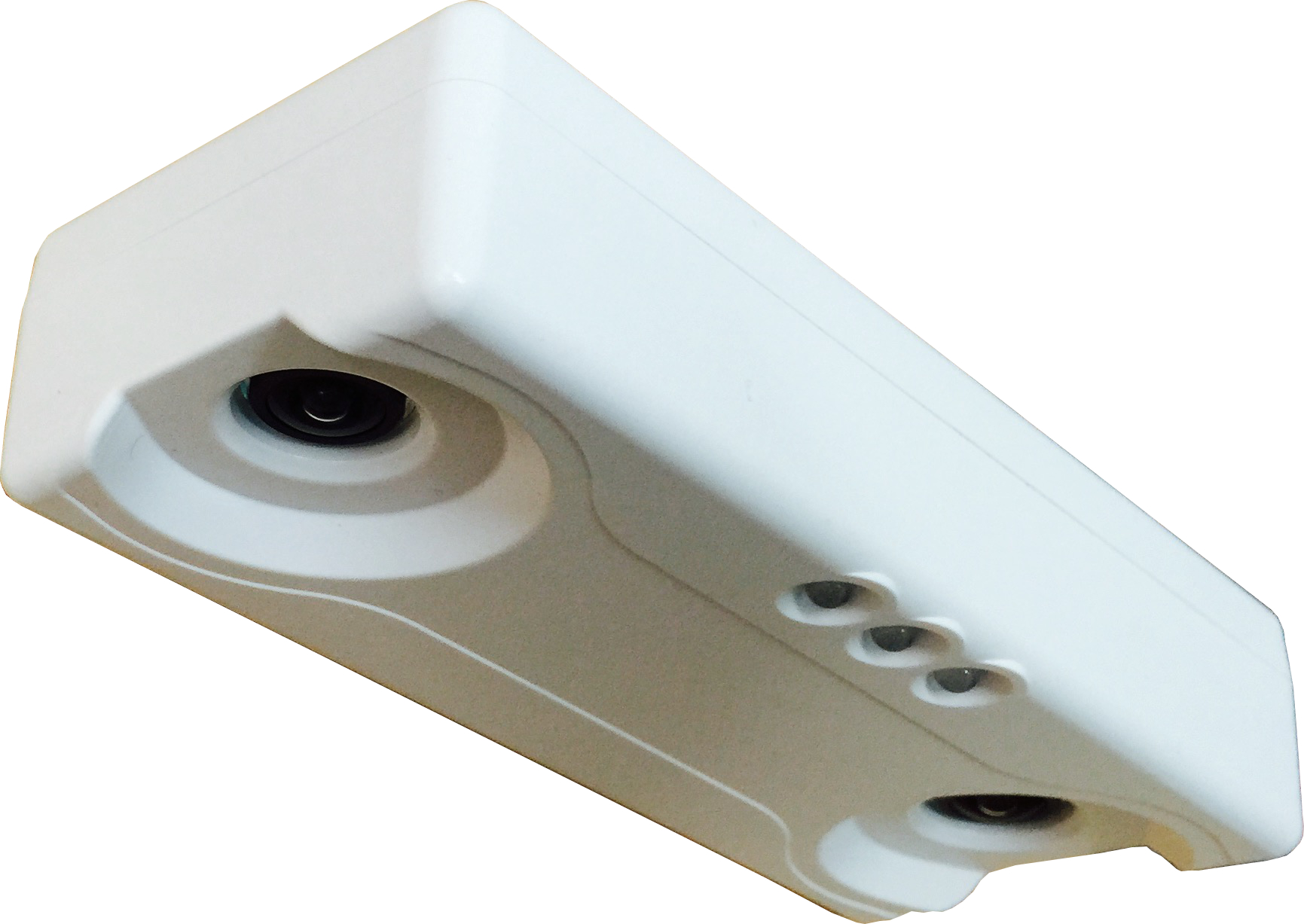

The Cohera-Tech  3D Overhead  analytic sensor is the optimal solution to measure customer traffic  in medium to high flow situations . The device uses the most advanced 3 dimensional stereo imaging technology available to give class leading accuracy. The 3D offers reliable, robust performance in a wide range of lighting levels both indoor and outdoor. The device is overhead mounted and since it incorporates stereo imaging can filter objects by height, shape and size. Separate counts can be generated for in and out traffic whilst trolleys and shadows are ignored. One sensor installed at a height of 4m can typically cover an entrance of 4+m in width (mounting the unit at a lower height reduces the coverage). The unit connects directly to a network (no additional boxes or PC required) and information is sent directly to our CoheraCount reporting system over the internet. The device is powered over the network cable (POE)

BENEFITS OF THE 3D COUNTER

• 3D Stereo imaging
• Class Leading accuracy (typically 97% +)
• Counting performance not affected by changing light levels or shadows
• Bi-Directional Counting of customers
• Can produce separate counts for adults and children (by height)*
• Count accuracy not affected by multiple customers passing in /out simultaneously
• Interfaces to the CoheraCount Reporting system
• Occupancy reporting
• Can filter trolleys and strollers(by height)
• Multiple count zones *
• Flexible mounting height options from 2.4 to 12m

*requires advanced firmware license at additional cost

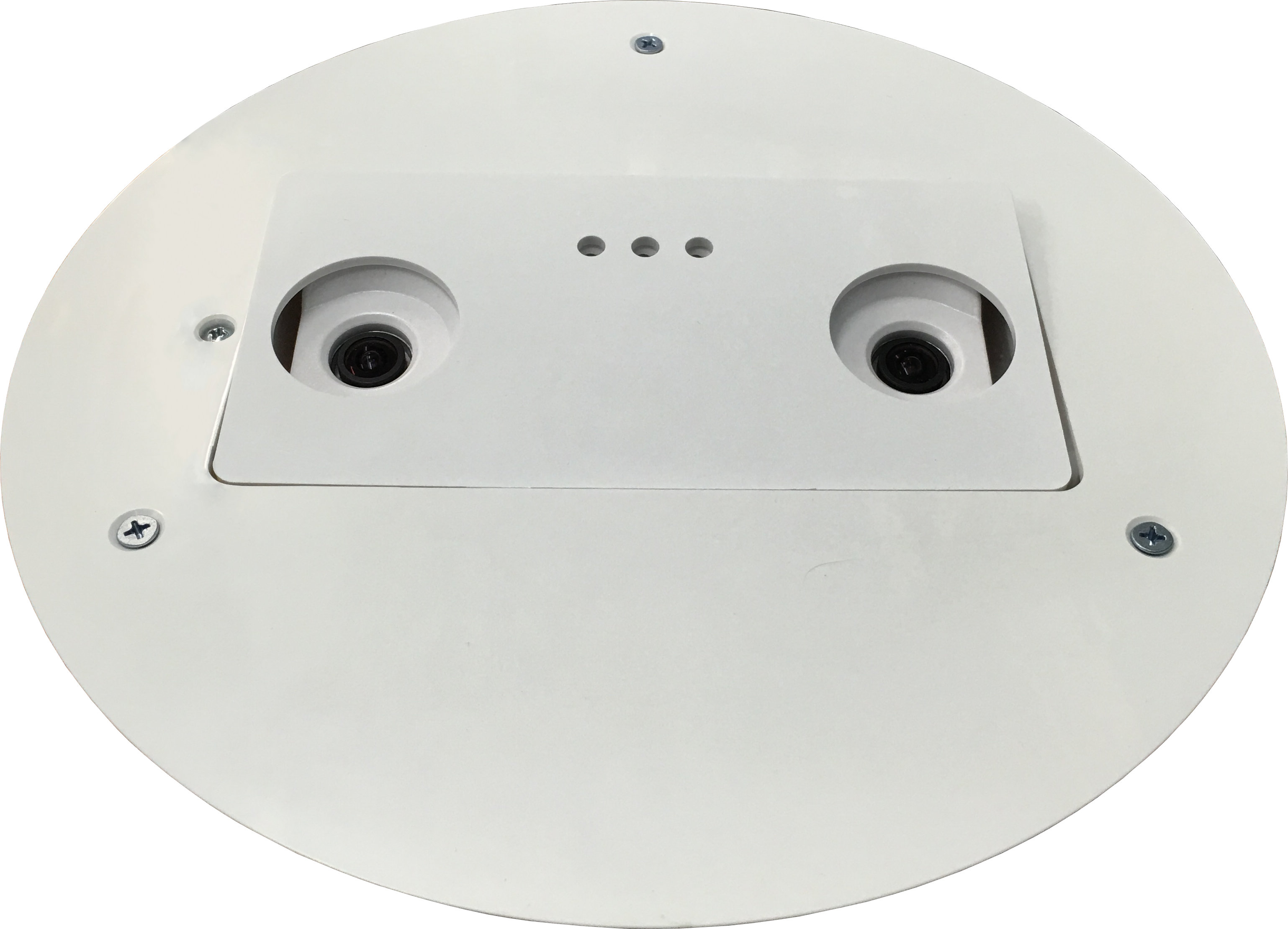

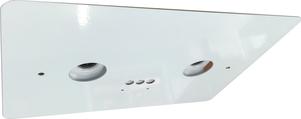

3D COUNTER MOUNTING OPTIONS

We offer multiple mounting solutions to suit your premises and ensure the absolute highest degree of accuracy and pleasing aesthetics
